The following table contains links to the various drawings used throughout the plans. Each drawing is available in three different formats:
  • click on the small image to get a larger bitmap image (good for viewing online)
  • download a PDF file (good for printing)
  • download a scaled vector graphic format (SVG) that can be manipulated with a variety of graphics programs such as the open source cross platform drawing program named Inkscape.

In addition to the drawings below, there is also a set of drawings for the panels that make up the envelope

Envelope
Nomenclature
PDF Inkscape SVG

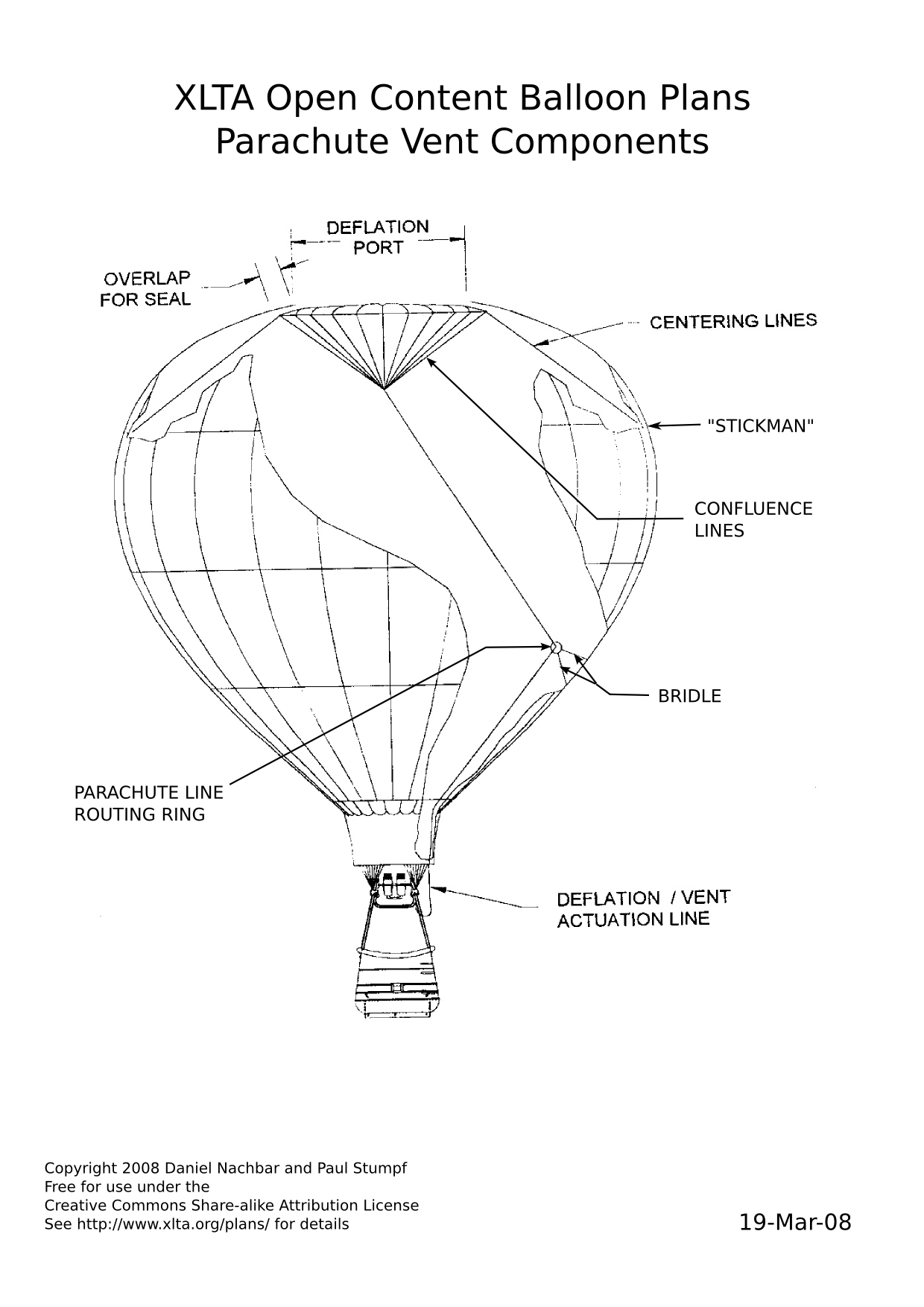

Parachute Components
(cut-away drawing)
PDF Inkscape SVG

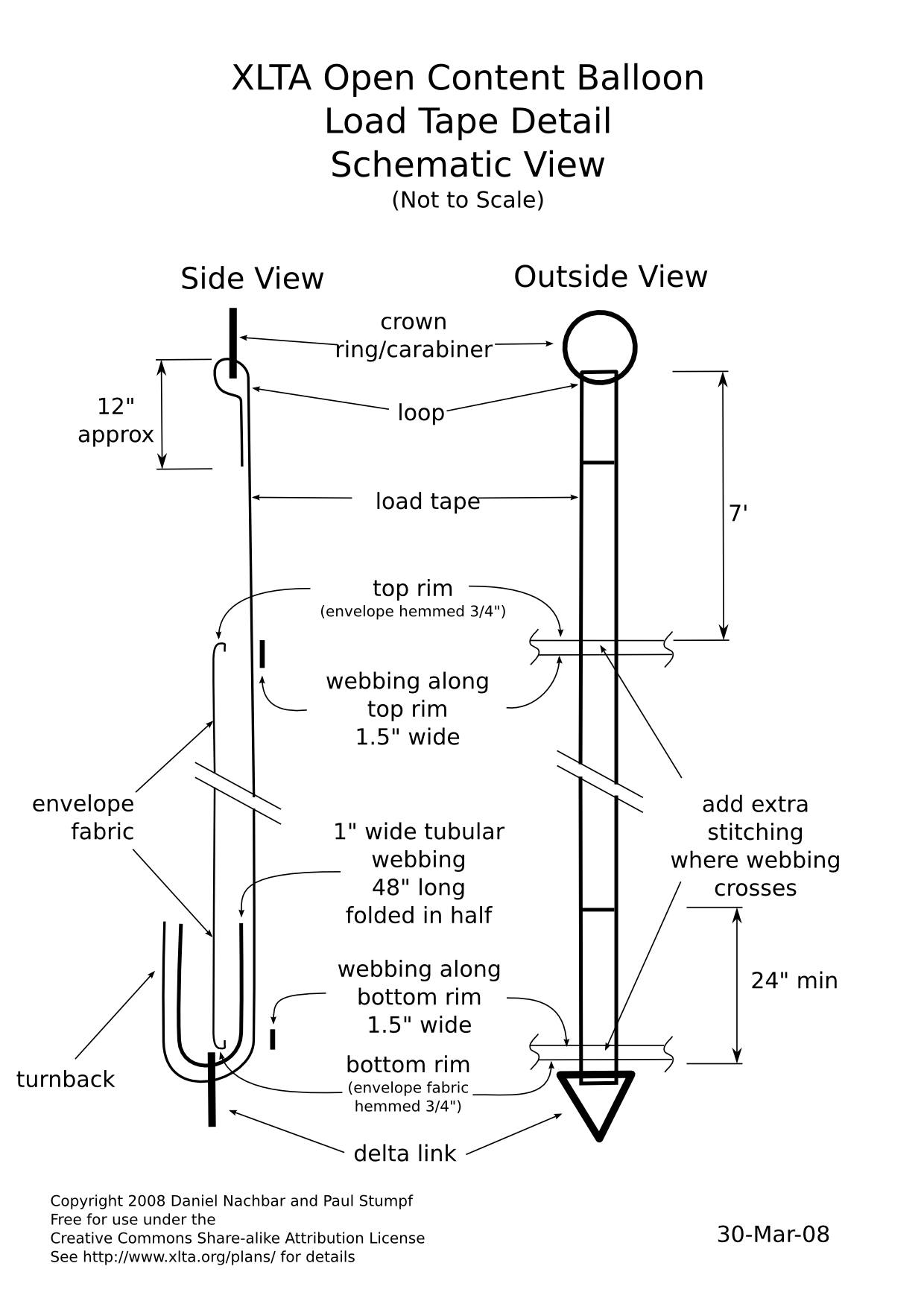

Load Tape Detail
(schematic view)
PDF Inkscape SVG

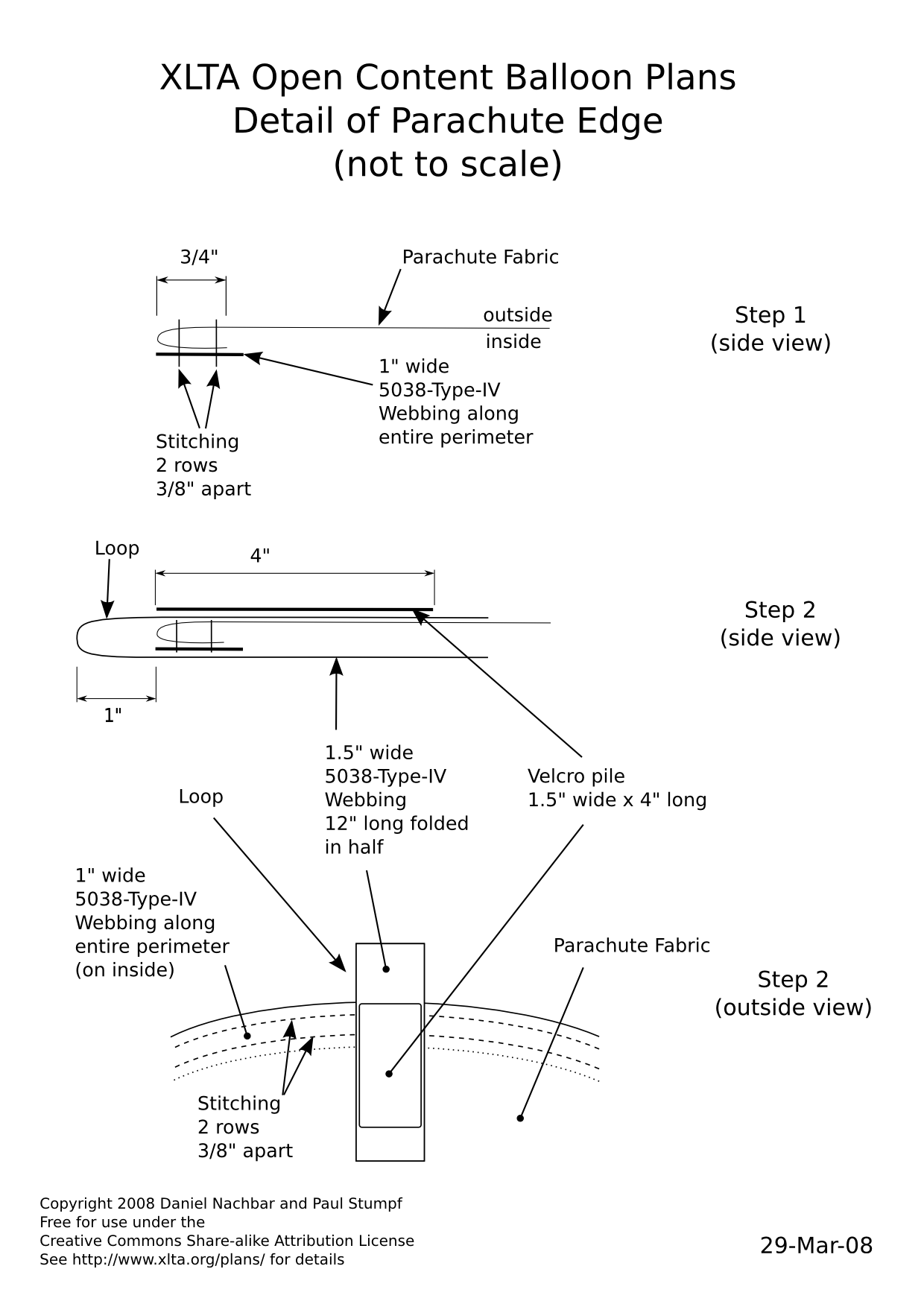

Edge of Parachute PDF Inkscape SVG

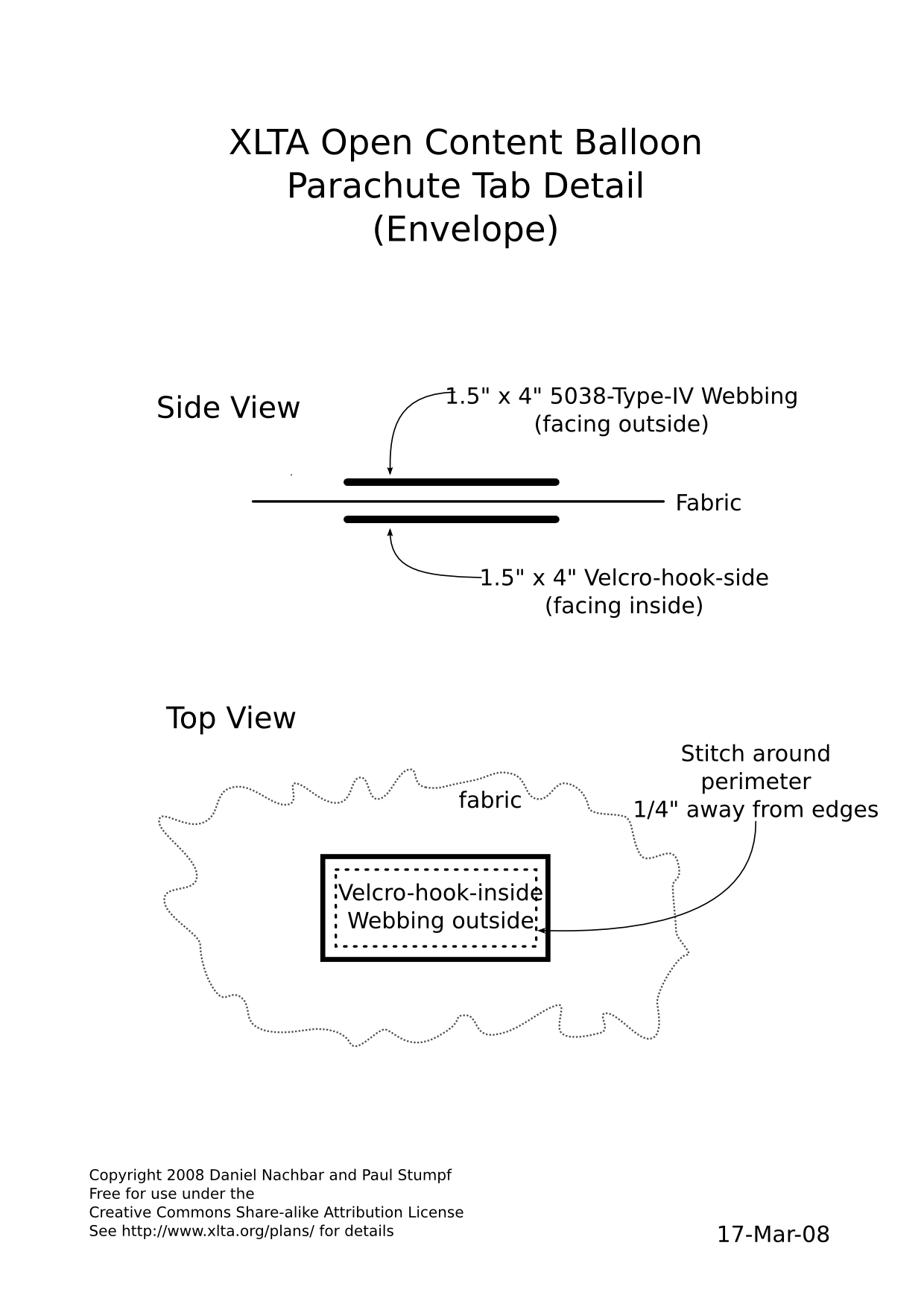

Parachute Attachment
Tab Detail on Envelope
PDF Inkscape SVG

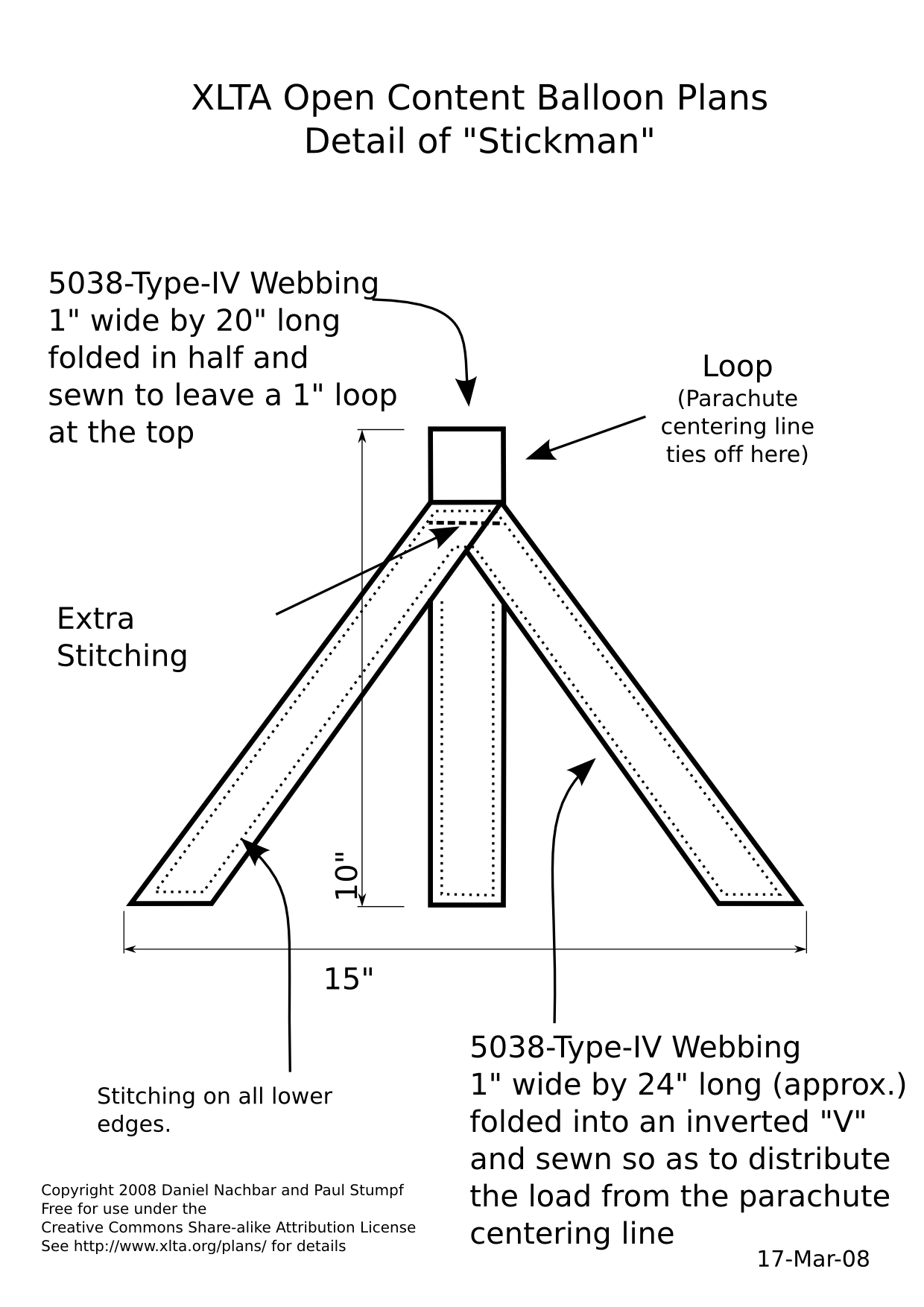

Stickman Detail PDF Inkscape SVG

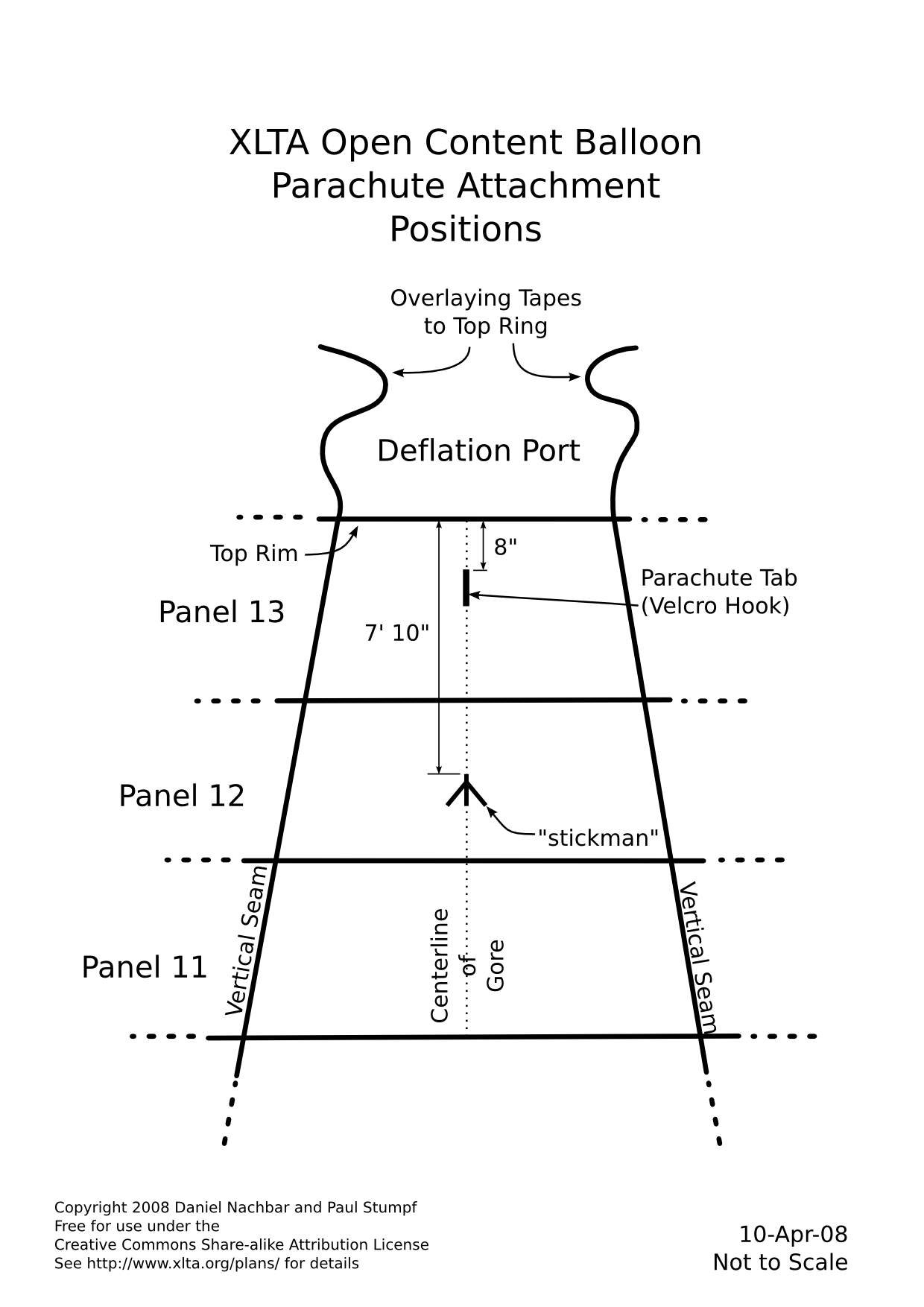

Parachute Attachment
Point Locations
PDF Inkscape SVG

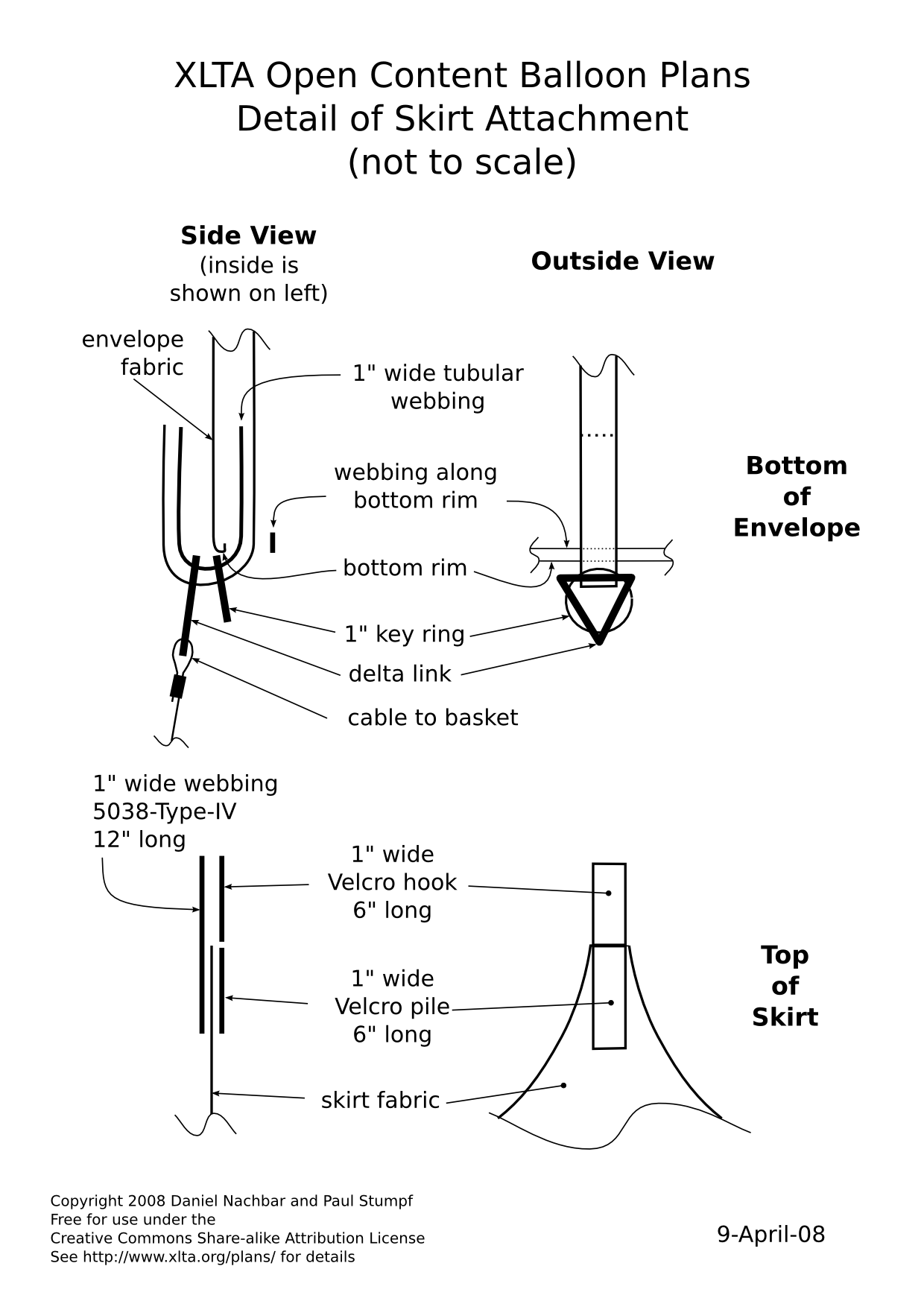

Skirt Attachment Detail PDF Inkscape SVG

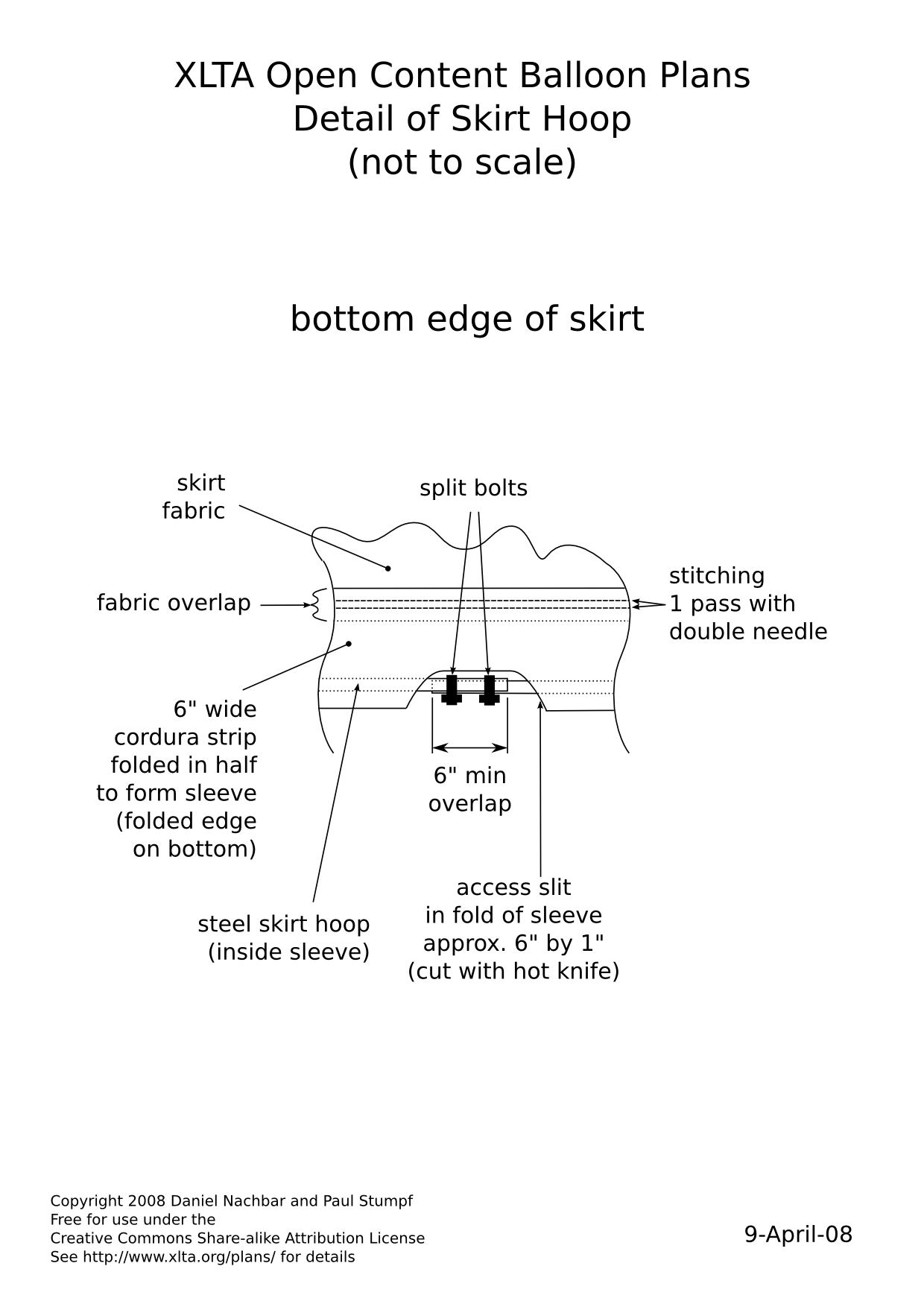

Skirt Hoop Detail PDF Inkscape SVG
